ESP32-u8g2简介

技术经验 dingxiao 阅读数:6008 2019年5月18日 12:29


ESP32-u8g2简介

0x01-u8g2

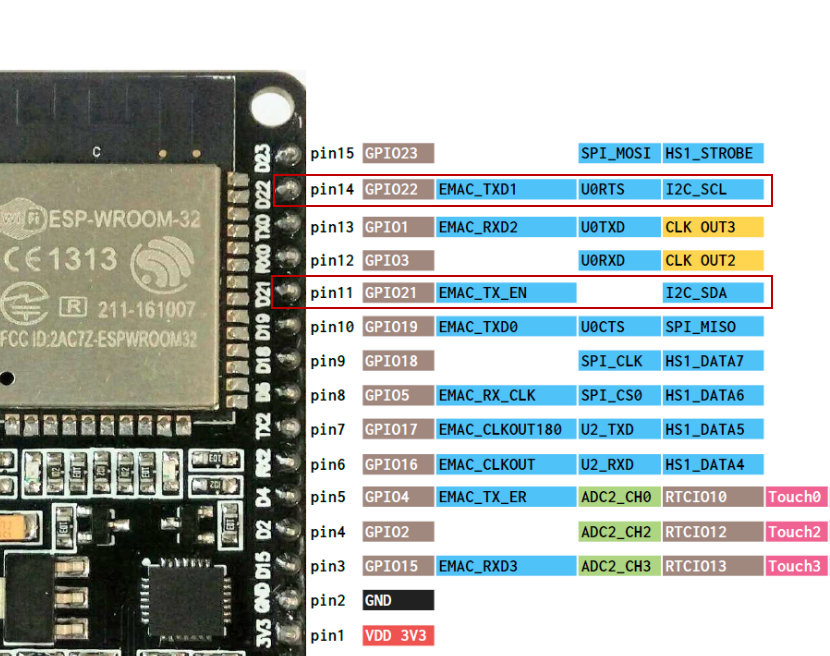

  • 测试中ESP32和0.91寸OLED连接关系如图,使用ESP32的I2C接口。

  • 创建u8g2显示设备:

 U8G2_SSD1306_128X32_UNIVISION_F_SW_I2C u8g2(U8G2_R0, /* clock=*/ 22, /* data=*/ 21, /* reset=*/ U8X8_PIN_NONE);   // Adafruit Feather M0 Basic Proto + FeatherWing OLED
  • 其中管脚分配是GPIO22(SCL),GPIO21(SDA)。

  • u8g2初始化:

 u8g2.begin(/* menu_select_pin= */ 13, /* menu_next_pin= */ U8X8_PIN_NONE, /* menu_prev_pin= */ U8X8_PIN_NONE, /* menu_up_pin= */ 4, /* menu_down_pin= */ 15, /* menu_home_pin= */ U8X8_PIN_NONE);
  • 其中u8g2.begin是初始化接口,她还可以分配GUI显示过程中采用的按键管脚分配。按键数值的采集功能可以用户自定义修改。本初始化中使用了3个ESP32自带的电容Touch功能的GPIO分别作为按键输入。

  • 其中T0(GPIO4-UP),T3(GPIO15-DOWN)和T4(GPIO13-SELECT)。

  • 按键采集:

  • 自定义覆盖原有按键采集操作,自定义函数uint8_t u8x8_GetMenuEvent(u8x8_t *u8x8) 。

  • ESP32中具备Touch功能的管教为:GPIO4/0/2/15/13/12/14/27/33/32,分别对应T0-T9,目前测试发现T2存在bug,暂未使用,ESP32中的Touch功能参考:http://www.esp32learning.com/code/esp32-capacitive-touch-example.php

 uint8_t u8x8_GetMenuEvent(u8x8_t *u8x8)
 {
     touch_t0 = touchRead(T0);
     if((touch_t0 < 12)&&(touch_t0 > 0))
     touch_pan0 = true;
     else
     touch_pan0 = false;

     touch_t3 = touchRead(T3);
     if((touch_t3 < 12)&&(touch_t3 > 0))
     touch_pan3 = true;
     else
     touch_pan3 = false;

     touch_t4 = touchRead(T4);
     if((touch_t4 < 12)&&(touch_t4 > 0))
     touch_pan4 = true;
     else
     touch_pan4 = false;

     if (touch_pan0) { return U8X8_MSG_GPIO_MENU_UP; }
     if (touch_pan3) { return U8X8_MSG_GPIO_MENU_DOWN; }
     if (touch_pan4) { return U8X8_MSG_GPIO_MENU_SELECT; }
 }
  • 典型的绘图模式为:

  u8g2.firstPage();
   do {
     drawSometing...
   } while ( u8g2.nextPage() );
0x02-userInterfaceSelectionList使用原理
  • 使用u8g2.userInterfaceSelectionList创建应用菜单时,需要注意的是该API在创建List后将在创建的List中无线循环,对用户后台应用程序有影响。

  // If Timer has fired
   if (Timer_flag1 != 0)
   {
         Timer_flag1 = 0;
         Serial.println("Going to sleep now");
   }

   Serial.println(String(Timer_flag));
   delay(10);

 //=================NAVEGACÃO===========类是一个while-始
 if ( menu_inicial == 1 ) //
 {
   current_selection = u8g2.userInterfaceSelectionList(
     "Menu Principal",
     current_selection,
     string_list
     );
 }
 //=================NAVEGACÃO===========类是一个while-终
   if ( current_selection == 0) {
     u8g2.userInterfaceMessage(
   "Nada Selecionado.",
   "",
   "",
   " ok ");
   }
  • 上述代码在List创建后,Serial.println("Going to sleep now")不能被执行,必须要等List选择菜单后才能被执行。创建List后类似于一个while(1)的无限循环。current_selection = u8g2.userInterfaceSelectionList。

0x03-u8g2.getMenuEvent()获得键值
  • 在应用中可以通过u8g2.getMenuEvent()来获得注册按键的键值,键值的获取方法函数可以自定义,与0x02中u8x8_GetMenuEvent描述的一致。

 void loop(void) {
   uint8_t e;
   e = u8g2.getMenuEvent();
   if ( e != 0 )
   {
     last_event = e;
   }
   draw();
 }
0x04-u8g2中使用中文
  • 在u8g2中使用中文需要有中文字库的支持,通过使用u8g2自带的中文示例可以掌握中文显示应用。

  • 我使用的了当中的一个尺寸的所有汉字的字库,并将其更名为:dx_gb2312。

 #include <Arduino.h>
 #include <U8g2lib.h>

 #ifdef U8X8_HAVE_HW_SPI
 #include <SPI.h>
 #endif
 #ifdef U8X8_HAVE_HW_I2C
 #include <Wire.h>
 #endif

 #include "u8g2_wqy.h"

 U8G2_SSD1306_128X32_UNIVISION_1_SW_I2C u8g2(U8G2_R0, /* clock=*/ 22, /* data=*/ 21, /* reset=*/ U8X8_PIN_NONE);   // Adafruit Feather M0 Basic Proto + FeatherWing OLED

 void setup(void) {
   u8g2.begin();
   u8g2.enableUTF8Print();  // enable UTF8 support for the Arduino print() function
 }

 void loop(void) {
 //  u8g2.setFont(u8g2_font_unifont_t_chinese3);  // use chinese2 for all the glyphs of "你好世界"
   u8g2.setFont(dx_gb2312);  // use chinese2 for all the glyphs of "你好世界"
   //u8g2.setFont(u8g2_font_b10_t_japanese1);  // all the glyphs of "こんにちは世界" are already included in japanese1: Lerning Level 1-6
   u8g2.setFontDirection(0);
   u8g2.firstPage();
   do {
     u8g2.setCursor(0, 15);
     u8g2.print("貂蝉-西施-杨贵妃");
     u8g2.setCursor(0, 31);
     u8g2.print("王昭君");
 //    u8g2.setCursor(0, 40);
 //    u8g2.print("你好世界");  // Chinese "Hello World"
     //u8g2.print("こんにちは世界");  // Japanese "Hello World"
   } while ( u8g2.nextPage() );
   delay(1000);
 }

  • 其中#include "u8g2_wqy.h"是包含的字库头文件。

 /**
  * https://github.com/larryli/u8g2_wqy
  */
 #ifndef _U8G2_WQY_H
 #define _U8G2_WQY_H

 #include <stdint.h>
 #include <stddef.h>

 #ifdef __cplusplus
 extern "C" {
 #endif

 #ifndef U8G2_USE_LARGE_FONTS
 #define U8G2_USE_LARGE_FONTS
 #endif

 #ifndef U8X8_FONT_SECTION

 #ifdef __GNUC__
 #  define U8X8_SECTION(name) __attribute__ ((section (name)))
 #else
 #  define U8X8_SECTION(name)
 #endif

 #if defined(__GNUC__) && defined(__AVR__)
 #  define U8X8_FONT_SECTION(name) U8X8_SECTION(".progmem." name)
 #endif

 #if defined(ESP8266)
 #  define U8X8_FONT_SECTION(name) __attribute__((section(".text." name)))
 #endif

 #ifndef U8X8_FONT_SECTION
 #  define U8X8_FONT_SECTION(name)
 #endif

 #endif

 #ifndef U8G2_FONT_SECTION
 #define U8G2_FONT_SECTION(name) U8X8_FONT_SECTION(name)
 #endif

 //extern const uint8_t u8g2_font_wqy12_t_chinese1[] U8G2_FONT_SECTION("u8g2_font_wqy12_t_chinese1");
 //extern const uint8_t u8g2_font_wqy12_t_chinese2[] U8G2_FONT_SECTION("u8g2_font_wqy12_t_chinese2");
 //extern const uint8_t u8g2_font_wqy12_t_chinese3[] U8G2_FONT_SECTION("u8g2_font_wqy12_t_chinese3");
 extern const uint8_t dx_gb2312[] U8G2_FONT_SECTION("dx_gb2312");
 //extern const uint8_t u8g2_font_wqy12_t_gb2312a[] U8G2_FONT_SECTION("u8g2_font_wqy12_t_gb2312a");
 //extern const uint8_t u8g2_font_wqy12_t_gb2312b[] U8G2_FONT_SECTION("u8g2_font_wqy12_t_gb2312b");
 //extern const uint8_t u8g2_font_wqy13_t_chinese1[] U8G2_FONT_SECTION("u8g2_font_wqy13_t_chinese1");
 //extern const uint8_t u8g2_font_wqy13_t_chinese2[] U8G2_FONT_SECTION("u8g2_font_wqy13_t_chinese2");
 //extern const uint8_t u8g2_font_wqy13_t_chinese3[] U8G2_FONT_SECTION("u8g2_font_wqy13_t_chinese3");
 //extern const uint8_t u8g2_font_wqy13_t_gb2312[] U8G2_FONT_SECTION("u8g2_font_wqy13_t_gb2312");
 //extern const uint8_t u8g2_font_wqy13_t_gb2312a[] U8G2_FONT_SECTION("u8g2_font_wqy13_t_gb2312a");
 //extern const uint8_t u8g2_font_wqy13_t_gb2312b[] U8G2_FONT_SECTION("u8g2_font_wqy13_t_gb2312b");
 //extern const uint8_t u8g2_font_wqy14_t_chinese1[] U8G2_FONT_SECTION("u8g2_font_wqy14_t_chinese1");
 //extern const uint8_t u8g2_font_wqy14_t_chinese2[] U8G2_FONT_SECTION("u8g2_font_wqy14_t_chinese2");
 //extern const uint8_t u8g2_font_wqy14_t_chinese3[] U8G2_FONT_SECTION("u8g2_font_wqy14_t_chinese3");
 //extern const uint8_t u8g2_font_wqy14_t_gb2312[] U8G2_FONT_SECTION("u8g2_font_wqy14_t_gb2312");
 //extern const uint8_t u8g2_font_wqy14_t_gb2312a[] U8G2_FONT_SECTION("u8g2_font_wqy14_t_gb2312a");
 //extern const uint8_t u8g2_font_wqy14_t_gb2312b[] U8G2_FONT_SECTION("u8g2_font_wqy14_t_gb2312b");
 //extern const uint8_t u8g2_font_wqy15_t_chinese1[] U8G2_FONT_SECTION("u8g2_font_wqy15_t_chinese1");
 //extern const uint8_t u8g2_font_wqy15_t_chinese2[] U8G2_FONT_SECTION("u8g2_font_wqy15_t_chinese2");
 //extern const uint8_t u8g2_font_wqy15_t_chinese3[] U8G2_FONT_SECTION("u8g2_font_wqy15_t_chinese3");
 //extern const uint8_t u8g2_font_wqy15_t_gb2312[] U8G2_FONT_SECTION("u8g2_font_wqy15_t_gb2312");
 //extern const uint8_t u8g2_font_wqy15_t_gb2312a[] U8G2_FONT_SECTION("u8g2_font_wqy15_t_gb2312a");
 //extern const uint8_t u8g2_font_wqy15_t_gb2312b[] U8G2_FONT_SECTION("u8g2_font_wqy15_t_gb2312b");
 //extern const uint8_t u8g2_font_wqy16_t_chinese1[] U8G2_FONT_SECTION("u8g2_font_wqy16_t_chinese1");
 //extern const uint8_t u8g2_font_wqy16_t_chinese2[] U8G2_FONT_SECTION("u8g2_font_wqy16_t_chinese2");
 //extern const uint8_t u8g2_font_wqy16_t_chinese3[] U8G2_FONT_SECTION("u8g2_font_wqy16_t_chinese3");
 //extern const uint8_t u8g2_font_wqy16_t_gb2312[] U8G2_FONT_SECTION("u8g2_font_wqy16_t_gb2312");
 //extern const uint8_t u8g2_font_wqy16_t_gb2312a[] U8G2_FONT_SECTION("u8g2_font_wqy16_t_gb2312a");
 //extern const uint8_t u8g2_font_wqy16_t_gb2312b[] U8G2_FONT_SECTION("u8g2_font_wqy16_t_gb2312b");

 #ifdef __cplusplus
 }
 #endif

 #endif

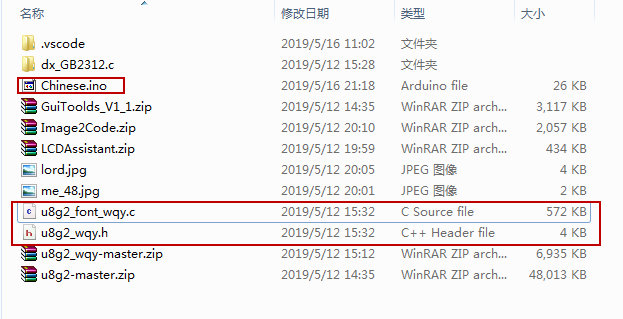

  • 项目的代码结构:

  • u8g2_font_wqy.c是字库文件,目前该字库文件包含了所有中文常用汉字。

0x05-u8g2自带的字库

0x06-u8g2显示变量值
  • u8g2中显示变量数值,需要采用的方法为:

 u8x8.setFont(u8x8_font_amstrad_cpc_extended_r);
 u8x8.setCursor(0, 0);
 u8x8.print(VariableInUse);
0x07-u8g2显示模式

  • page buffer mode(Picture Loop)

  • U8x8 character mode

  • 其中前几天使用某些API时,有显示不正确的地方,现在明白原因了,是在初始化时显示模式配置有问题,不同的显示模式对应不同的API函数。
